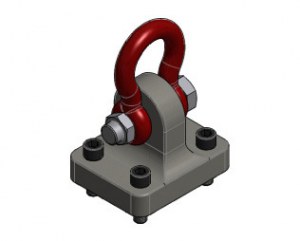

Lifting Lug
Product Number: LL-XX
*ALL MATERIALS, COMPONENTS AND WORKMANSHIP EXCEEDS THE CURRENT ASME B30.20.
*MADE TO ORDER ONLY. CALL FOR DELIVERY.
Continued Below
*ALL MATERIALS, COMPONENTS AND WORKMANSHIP EXCEEDS THE CURRENT ASME B30.20.
*MADE TO ORDER ONLY. CALL FOR DELIVERY.
| Working Load Limit |
Stock No. |
Weight Each (LBS.) |
Dimensions (IN.) |
Bolt ⌀ (IN.) |
Shackle (IN.) |
| A |
B |
C |
D |
E |
F |
G |
H |
| 30T |
LL-30 |
63.3 |
10.00 |
8.00 |
7.00 |
5.00 |
8.25 |
2.25 |
2.00 |
5.50 |
1.00 |
1.75 |
| 40T |
LL-40 |
77.1 |
12.00 |
8.00 |
9.00 |
5.00 |
8.50 |
2.75 |
2.00 |
5.50 |
1.25 |
2.125 |
| 50T |
LL-50 |
80.3 |
12.00 |
8.00 |
9.00 |
5.00 |
8.50 |
3.125 |
2.00 |
5.50 |
1.25 |
2.375 |
| 55T |
LL-55 |
80.0 |
12.00 |
8.00 |
9.00 |
5.00 |
9.00 |
4.00 |
2.00 |
5.75 |
1.25 |
2.875 |
| Working Load Limit |
Stock No. |
Weight Each (KGS.) |
Dimensions (MM.) |
Bolt ⌀ (IN.) |
Shackle (IN.) |
| A |
B |
C |
D |
E |
F |
G |
H |
| 30T |
LL-30 |
28.7 |
254.0 |
203.2 |
177.8 |
127.0 |
209.6 |
57.2 |
50.8 |
139.7 |
1.00 |
1.75 |
| 40T |
LL-40 |
35.0 |
304.8 |
203.2 |
177.8 |
127.0 |
215.9 |
57.2 |
50.8 |
139.7 |
1.25 |
2.125 |
| 50T |
LL-50M |
36.4 |
304.8 |
203.2 |
228.6 |
127.0 |
215.9 |
79.4 |
50.8 |
139.7 |
30MM |
2.375 |
| 55T |
LL-55 |
40.0 |
304.8 |
203.2 |
228.6 |
127.0 |
228.6 |
101.6 |
50.8 |
146.1 |
1.25 |
2.875 |
