CB

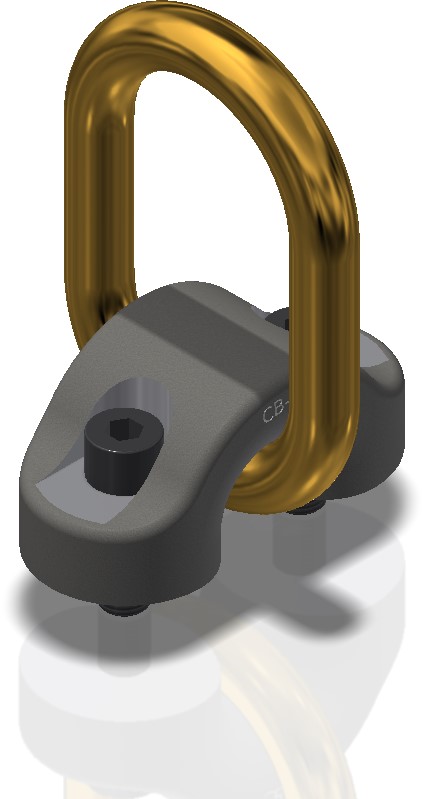

Cast Lift Blocks
Detailed capacity and dimensional data for this product family.
- Model
- CB-25
- Working load limit
- 25 tons
Technical data
Dimensions & specifications
Imperial
| Model | Weight lb | A in. | B in. | C in. | D in. | E in. | F in. | G in. | H in. |
|---|---|---|---|---|---|---|---|---|---|
| CB-25 | 30.2 | 10.75 | 4.75 | 6.00 | 1.30 | 1.63 | 1.63 | 1.75 | 4.19 |
Metric
| Model | Weight kg | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | Bolt thread mm |
|---|---|---|---|---|---|---|---|---|---|---|
| CB-25 | 13.7 | 273.10 | 120.70 | 152.40 | 33.00 | 41.20 | 41.20 | 44.50 | 106.40 | M30-3.5 |
