LB

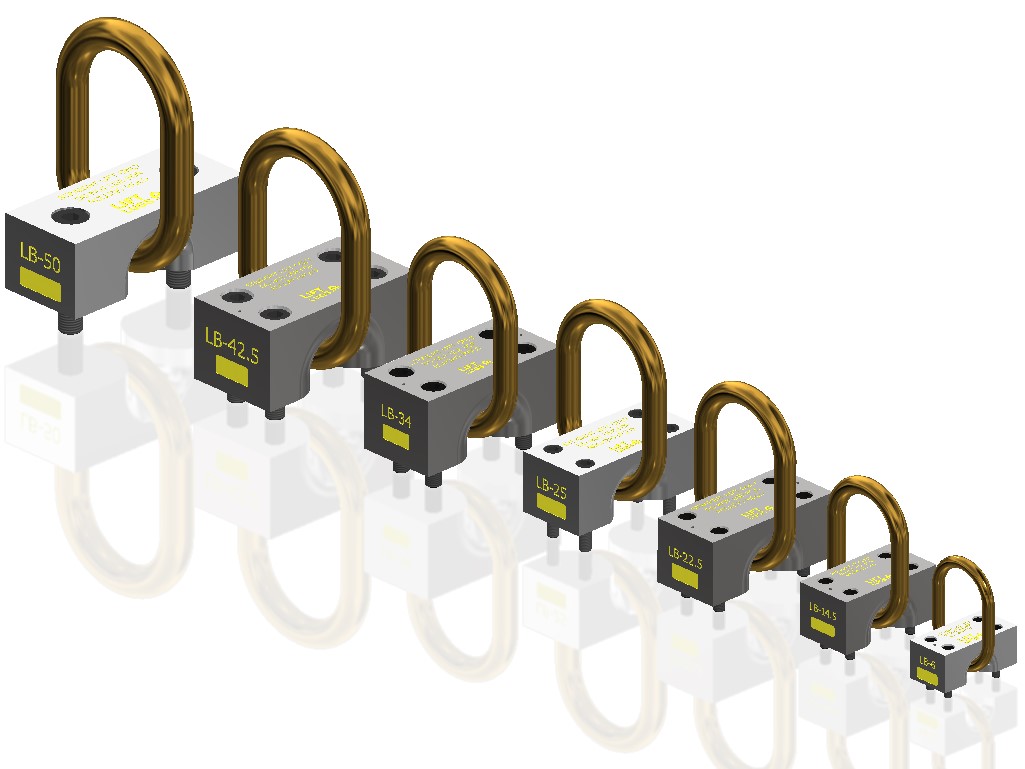

Lift Blocks
Detailed capacity and dimensional data for this product family.
- Model
- LB-25
- Working load limit
- 25 tons
Technical data
Dimensions & specifications
Imperial
| Model | Weight lb | A in. | B in. | C in. | D in. | E in. | F in. | G in. | Bolt diameter in. | Master Link in. |
|---|---|---|---|---|---|---|---|---|---|---|
| LB-25 | 44.5 | 10.00 | 4.75 | 7.00 | 2.75 | 4.00 | 1.63 | 1.63 | 0.75 | 1.50 |
Metric
| Model | Weight kg | A mm | B mm | C mm | D mm | E mm | F mm | G mm | Bolt diameter in. | Master Link in. |
|---|---|---|---|---|---|---|---|---|---|---|
| LB-25 | 20.2 | 254.00 | 120.70 | 177.80 | 69.90 | 101.60 | 41.30 | 41.30 | 0.75 | 1.50 |
