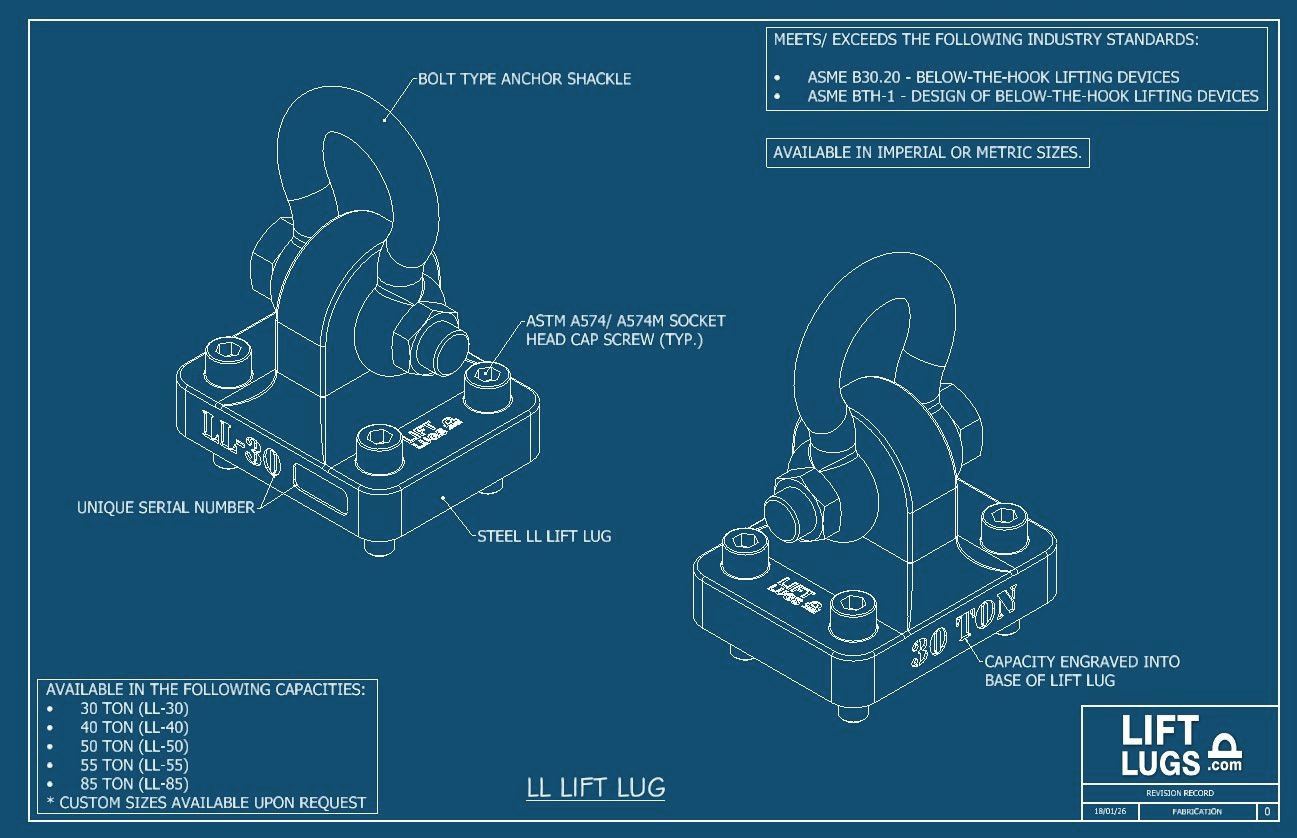

LL
Lifting Lugs

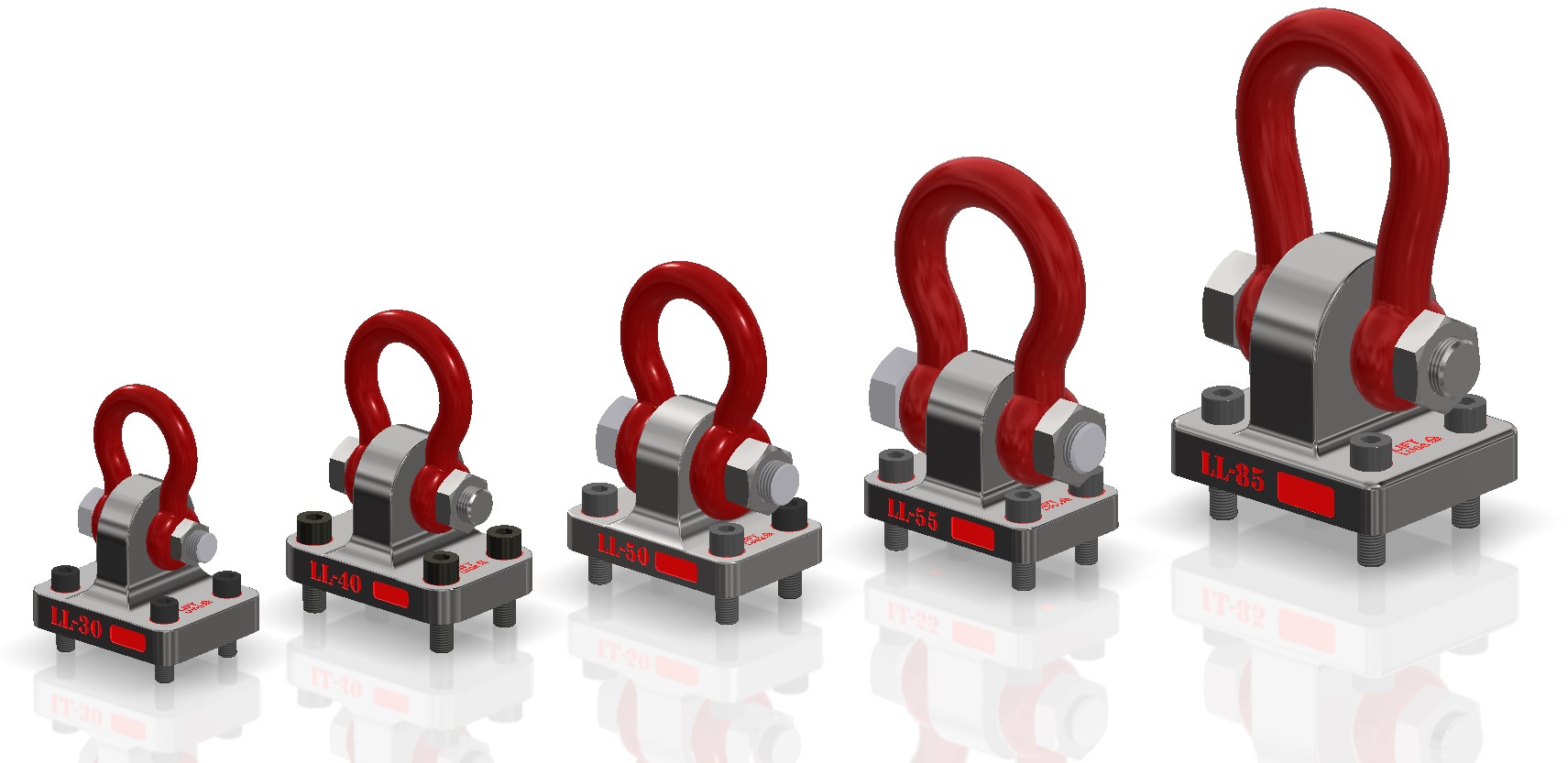

Detailed capacity and dimensional data for this product family.
- Model
- LL-30
- Working load limit
- 30 tons
Technical data
Dimensions & specifications
Imperial
| Model | Weight lb | A in. | B in. | C in. | D in. | E in. | F in. | G in. | H in. | Bolt diameter in. | Shackle in. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LL-30 | 63.3 | 10.00 | 8.00 | 7.00 | 5.00 | 8.25 | 2.25 | 2.00 | 5.50 | 1.00 | 1.75 |
Metric
| Model | Weight kg | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | Bolt diameter mm | Shackle in. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LL-30 | 28.7 | 254.00 | 203.20 | 177.80 | 127.00 | 209.60 | 57.20 | 50.80 | 139.70 | — | 1.75 |
