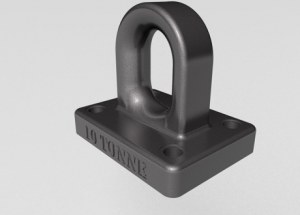

Cast Lifting Lug
Product Number: CL-XX
ALL MATERIALS, COMPONENTS AND WORKMANSHIP EXCEEDS THE CURRENT ASME B30.20.
Continued Below
ALL MATERIALS, COMPONENTS AND WORKMANSHIP EXCEEDS THE CURRENT ASME B30.20.
| Working Load Limit |
Stock No. |
Weight Each (LBS.) |
Dimensions (IN.) |
Bolt ⌀ (IN.) |
| A |
B |
C |
D |
E |
F |
G |
H |
I |
| 5T |
CL-5 |
12.05 |
5.80 |
4.65 |
3.00 |
3.00 |
6.50 |
1.50 |
1.00 |
4.00 |
2.50 |
0.50 |
| 10T** |
CL-10 |
26.00 |
8.00 |
6.00 |
6.00 |
4.00 |
7.00 |
2.00 |
1.38 |
4.00 |
2.50 |
0.75 |
| 20T* |
CL-20 |
62.55 |
10.13 |
7.50 |
5.00 |
5.00 |
12.06 |
2.25 |
1.50 |
7.00 |
3.50 |
0.75 |
| 50T* |
CL-50 |
142.36 |
13.50 |
9.00 |
7.00 |
6.00 |
18.25 |
2.75 |
2.00 |
12.00 |
6.00 |
1.00 |
| Working Load Limit |
Stock No. |
Weight Each (KGS.) |
Dimensions (MM.) |
Bolt ⌀ (IN.) |
| A |
B |
C |
D |
E |
F |
G |
H |
I |
| 5T |
CL-5 |
5.47 |
147.2 |
118.2 |
76.2 |
76.2 |
164.8 |
38.1 |
25.4 |
101.6 |
63.5 |
M12.0-1.75 |
| 10T** |
CL-10 |
11.80 |
203.2 |
152.4 |
152.4 |
101.6 |
177.8 |
50.8 |
35.1 |
101.6 |
63.5 |
M20.0-2.50 |
| 20T* |
CL-20 |
28.38 |
257.4 |
190.5 |
127.0 |
127.0 |
306.4 |
57.2 |
38.1 |
177.8 |
88.9 |
M20.0-2.50 |
| 50T* |
CL-50 |
64.59 |
343.6 |
228.6 |
177.8 |
152.4 |
463.6 |
69.9 |
50.8 |
304.8 |
152.4 |
N/A |
* Manufactured upon order confirmation.
** Base shape differs slightly from images shown.
