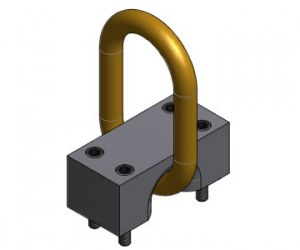

Lift Block
Product Number: LB-XX
*ALL MATERIALS, COMPONENTS AND WORKMANSHIP EXCEEDS THE CURRENT ASME B30.20.
*MADE TO ORDER. CALL FOR DELIVERY.
Continued Below
*ALL MATERIALS, COMPONENTS AND WORKMANSHIP EXCEEDS THE CURRENT ASME B30.20.
*MADE TO ORDER. CALL FOR DELIVERY.
| Working Load Limit |
Stock No. |
Weight Each (LBS.) |
Dimensions (IN.) |
Bolt ⌀ (IN.) |
Master Link (IN.) |
| A |
B |
C |
D |
E |
F |
G |
| 25T |
LB-25 |
44.5 |
10.00 |
4.75 |
7.00 |
2.75 |
4.00 |
1.625 |
1.625 |
0.75 |
1.50 |
| 50T |
LB-50 |
98.4 |
14.00 |
6.00 |
9.00 |
- |
5.00 |
2.125 |
2.125 |
1.50 |
2.00 |
| Working Load Limit |
Stock No. |
Weight Each (KGS.) |
Dimensions (MM.) |
Bolt ⌀ (IN.) |
Master Link (IN.) |
| A |
B |
C |
D |
E |
F |
G |
| 25T |
LB-25 |
20.2 |
254.0 |
120.7 |
177.8 |
69.9 |
101.6 |
41.3 |
41.3 |
0.75 |
1.50 |
| 50T |
LB-50 |
44.6 |
355.6 |
152.4 |
228.6 |
- |
127.0 |
54.0 |
54.0 |
1.50 |
2.00 |
